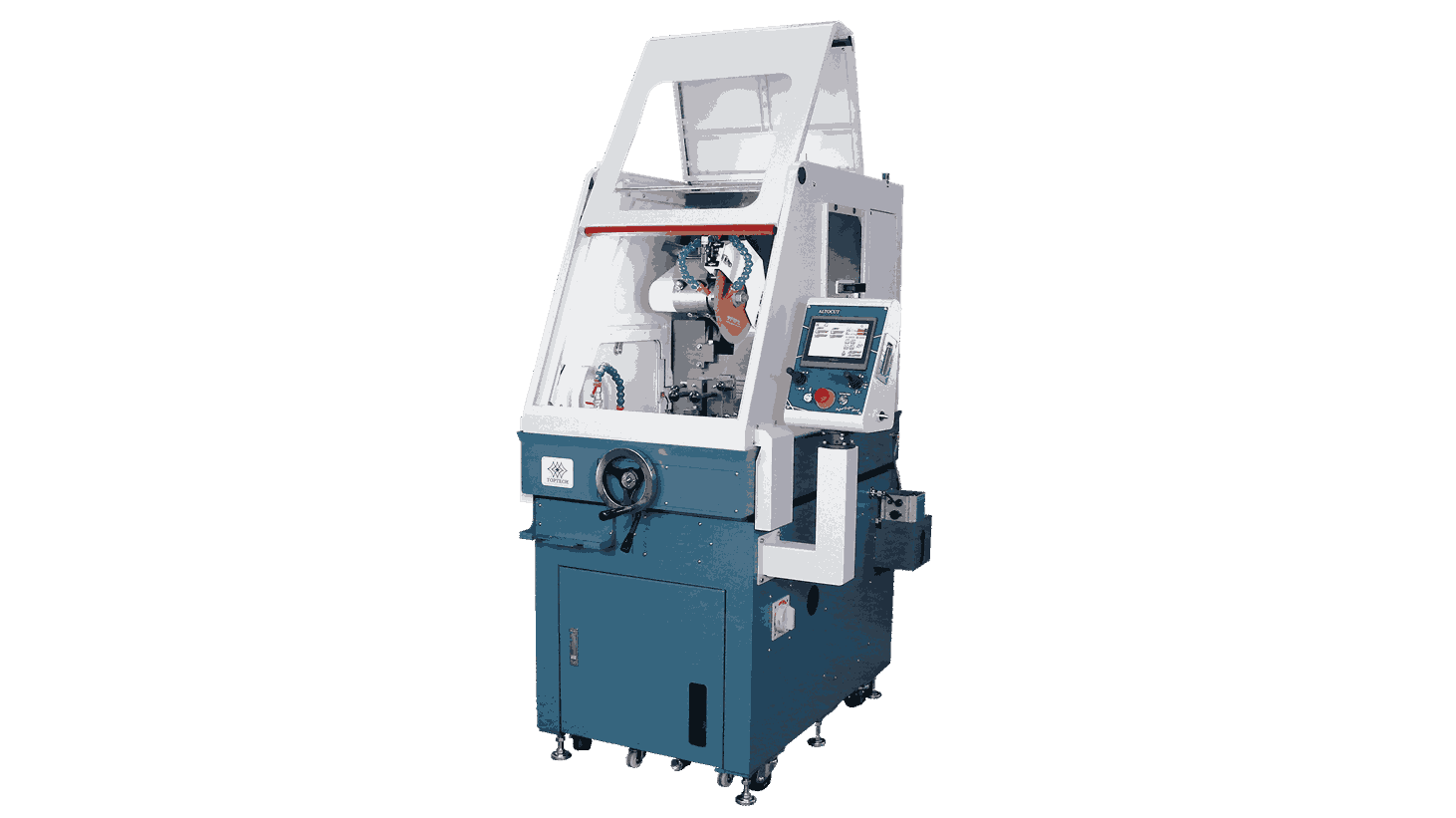

the CF-250B 12″ Abrasive Cutter achieves maximum flexibility by the cutting action moving in both the Y (back and forth) and Z (up and down) axis, allowing for the cutting of parts with a large diameter or requiring a long traverse. A set of vises and recirculation system are included with each abrasive cutter.
CF-250B Abrasive Cutter Specifications
| MODEL | CF-250B |
|---|---|
| MOTOR POWER | 3hp |
| CUTTING BLADE | 305mm/12″ |
| MAX DIAMETER CUT | 60mm/2.4″ |
| CUTTING DEPTH, TRAVERSE | 260mm/10″ |
| CUTTING DIRECTION | X and Z axes |
| ROTATIONAL SPEED | 3000 RPM |
| RECIRCULATING TANK | 80 Liters, 21 Gal |
| MACHINE WEIGHT | 750kg/1650lb |
| POWER | 220V/380V/415V/440V-3ph |
The CF-250B Abrasive Cutter is designed for high-precision applications, delivering consistent, parallel cuts with its advanced laser guidance. This laser technology ensures exact alignment for all material types, significantly reducing the risk of deformation or misalignment. The CF-250B also features easy-to-adjust parameters, allowing it to adapt to diverse project needs while maintaining cutting accuracy.
* Laser-guided cutting ensures precise alignment and parallelism
* Adjustable parameters suit various materials
* Built-in vises and recirculating system boost operational efficiency
With integrated vises to securely hold materials and a recirculating system for smooth, continuous operation, the CF-250B enhances workflow efficiency and reliability. This cutter meets the rigorous standards required in professional workshops and job sites, handling materials like metal and wood with ease. Focused on delivering precision and consistency, the CF-250B is a dependable solution for exacting cutting requirements.
