Specification
|
P25G‐2 |
||||
|
Platen Size (mm) |
Ø203.2 (8”) |
Ø254 (10”) |
Ø203.2 (8”) |
Ø254 (10”) |
|
Platen Quantity |
1 |
2 |
||
|
Grinding Method |
Manual |
|||
|
Platen Motor Power (W) |
400 |
|||
|
Platen Rotational Speed (rpm) |
1~600 (Effective Rotational Speed 10~600) |
|||
|
Machine Dimension WxDxH (mm) |
552x698x572 |
872x698x572 |
||
|
Machine Weight (kg) |
37 39 |
61 63 |
||
|
Power Supply (V) |
AC 220 1Ø |
|||
|
Standard Accessories |
Polishing Platen 1pc, Anti‐Splash Cover 1 pc, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc |
Grinding Platen 1pc, O‐Ring 1pc, Polishing Platen 1pc, Anti‐Splash Cover 2pcs, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc |
||
|
Option |
P20F0027 Dispenser Set for One Bottle, P20F0028 Dispenser Set for Four Bottles, PA0108‐1 8” Anti‐Splash Cover (Manual), PA0108 10” Anti‐Splash Cover (Manual), PA0108‐3 8” Anti‐Splash Cover (Auto), PA0108‐4 10” Anti‐Splash Cover (Auto) |
|||

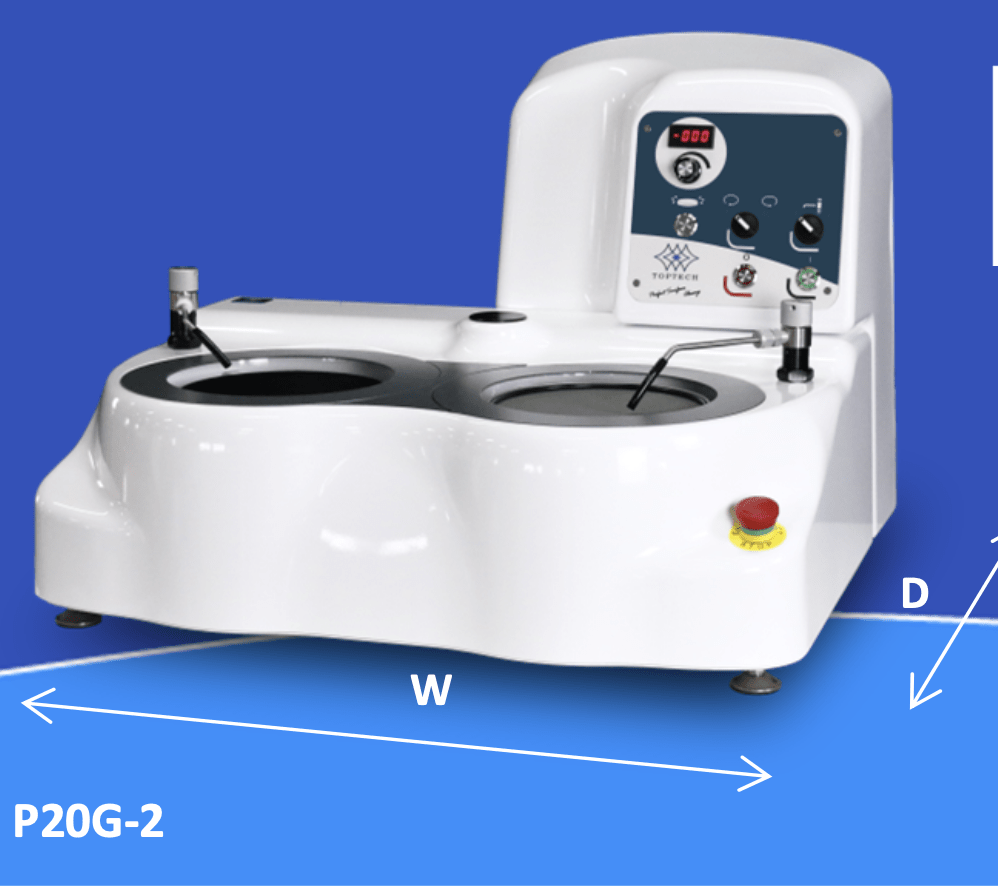

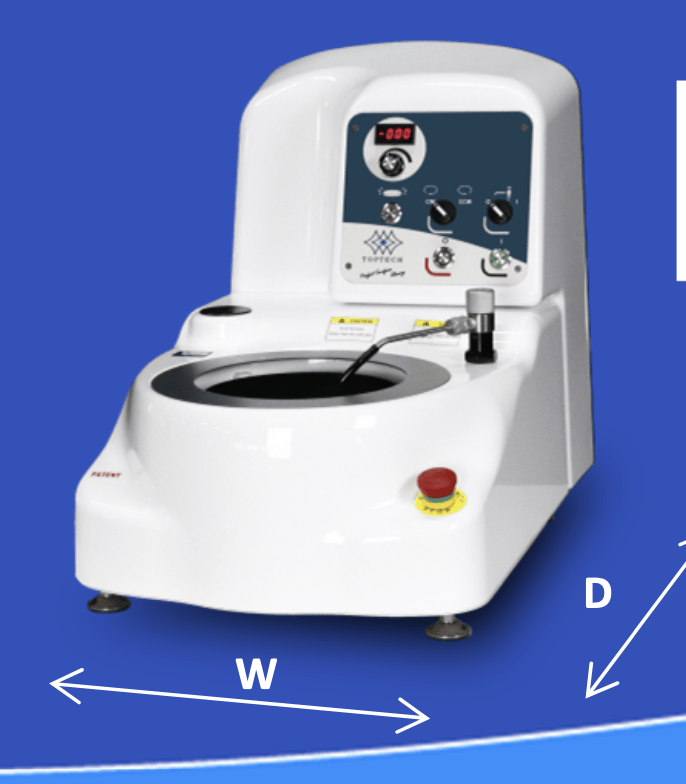

The PLATO-E SERIES Grinding and Polishing Machine is designed to deliver high precision and adaptability in professional grinding and polishing applications. With a flexible, modularized control box, this machine optimizes space utilization, allowing for an efficient, streamlined workspace setup. Its industrial-grade plastic construction ensures lasting durability, making it suitable for rigorous environments and demanding use.
Key functional features include a retractable water hose, rinse and spin capabilities, and CW/CCW directional control, all of which contribute to a smooth, efficient workflow. The PLATO-E SERIES is equipped with multiple platens, offering versatility across a wide range of grinding and polishing tasks. For added precision, optional diamond discs are available, providing flatness and accuracy in polishing results.
The PLATO-E SERIES is well-suited for professional workshops, laboratories, and precision manufacturing facilities requiring consistent and high-quality results. Its advanced features and modular design offer a practical solution to meet diverse operational needs.
