Specification
|
Model |
P20G‐1‐R6 P20G‐1‐R3 |
P25G‐1‐R6 P25G‐1‐R3 P25G‐1‐R4 |
|
Platen Size (mm) |
Ø203.2 (8”) |
Ø254 (10”) |
|
Platen Quantity |
1 |
|
|
Sample Size / Quantity |
Ø25mm, Ø25.4mm, Ø31.75mm, Ø32mm/ 6pcs Ø38.1mm,Ø40mm/3pcs |
Ø25mm, Ø25.4mm, Ø31.75mm, Ø32mm/6pcs |
|
Individual Force / |
500g~2kg / 6 pcs, 500g~4kg / 3 pcs, 500g~6kg / 2 pcs, |
|
|
Max 12kg in total (Optional: Max 18kg in total) |
||
|
Precision Individual Micro Force (kg) |
0.2~1 (Optional) |
|
|
Center Force (kg) |
3~12 (Optional) |
|
|
Platen Motor Power (W) |
400 |
|
|
Platen Rotational Speed (rpm) |
1~600 |
|
|
Head Motor Power (W) |
50 |
|
|
Head Rotational Speed (rpm) |
10~170 |
|
|
Timer (s) |
0~360000secs (0~6000mins) |
|
|
Machine Dimension WxDxH (mm) |
635x698x670 |
|
|
Machine Weight (kg) |
64 66 |
|
|
Power Supply (V) |
AC 220V 1Ø |
|
|
Standard Accessories |
Polishing Platen 1pc, Anti‐Splash Cover 1 pc, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, PU Pipes 6m, 500g Dispenser 1 pc, Lubricant 1L, Air Pressure Gun 1set |
|
|
Option |
P20F0030 Dispenser Set, PA0108‐1 8” Anti‐Splash Cover (Manual), PA0108 10” Anti‐Splash Cover (Manual), PA0108‐3 8” Anti‐Splash Cover (Auto), PA0108‐4 10” Anti‐Splash Cover (Auto), PA0108‐2 Anti‐Splash Cover (Full‐Cover) |
|

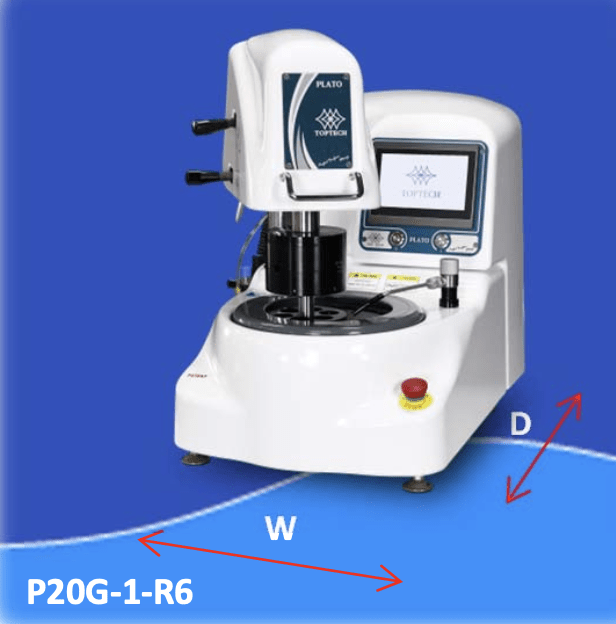

The PLATO-R SERIES Precision Air-Pressure Grinding and Polishing Machine delivers exceptional control and consistency for demanding surface finishing applications. Designed for versatility, this advanced system features a 7″ HMI touch panel for intuitive operation, allowing users to easily adjust settings to meet specific requirements.
With individual force, micro force, and central force controls, the PLATO-R SERIES ensures precise application of pressure for each sample, producing consistent results across various materials. The machine offers a platen speed range of 1-600 RPM for optimal material removal, along with a head speed of 10-170 RPM for achieving a flawless polish. It accommodates sample sizes up to 50mm, making it suitable for a wide range of applications.
Powered by a robust 400W platen motor, the PLATO-R SERIES is designed for high productivity and consistent results, effectively eliminating inconsistencies. Whether processing semiconductor wafers, metal parts, or technical ceramics, this machine serves as an ideal solution for improving surface finishing operations to a new standard of precision.
